COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface

Elite Tree Technology
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers

    Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers
    • Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers
    • Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers
    • Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers
    • Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers
    • Buy cheap COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface from wholesalers

    COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface

    Ask Lasest Price
    Brand Name : Elite Tree
    Model Number : ET240128B02
    Certification : ISO14001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100Kpcs~ per month
    Delivery Time : 5days for sample and 20-25 days for mass production
    • Product Details
    • Company Profile

    COB 240 x 128 LCD Display Module ET240128B02 ROHS Approved 8 Bit Interface

    COB 240*128 Resolution LCD Display Module STN Yellow Green Transflective Positive


    LCD Display Module


    Product Information


    Display TypeCOB STN Transflective Positive
    Outline dimension144.00mm * 104.00mm * 15.00mm
    Viewing Area
    114.00mm * 64.00 mm
    Interface
    8-Bit
    Power supply(typ)5.0V
    Driver ICT6963C / SDN8080G
    Viewing Angle6 O'clock
    Operating temp
    -20ºc~70ºc
    Storage temperature-30ºc~80ºc
    If accept customizedYes
    RoHS complianceYes

    Our advantages


    1) Small quantity accepted
    2) Competitive price and short lead-time and best service
    3) ROHS/ ISO 14001 and other related certificates are available
    4) Reply the mail within 24 hours


    ​Application


    Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

    Domestic electrical appliance(Household appliance), Fuel dispensers,

    Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

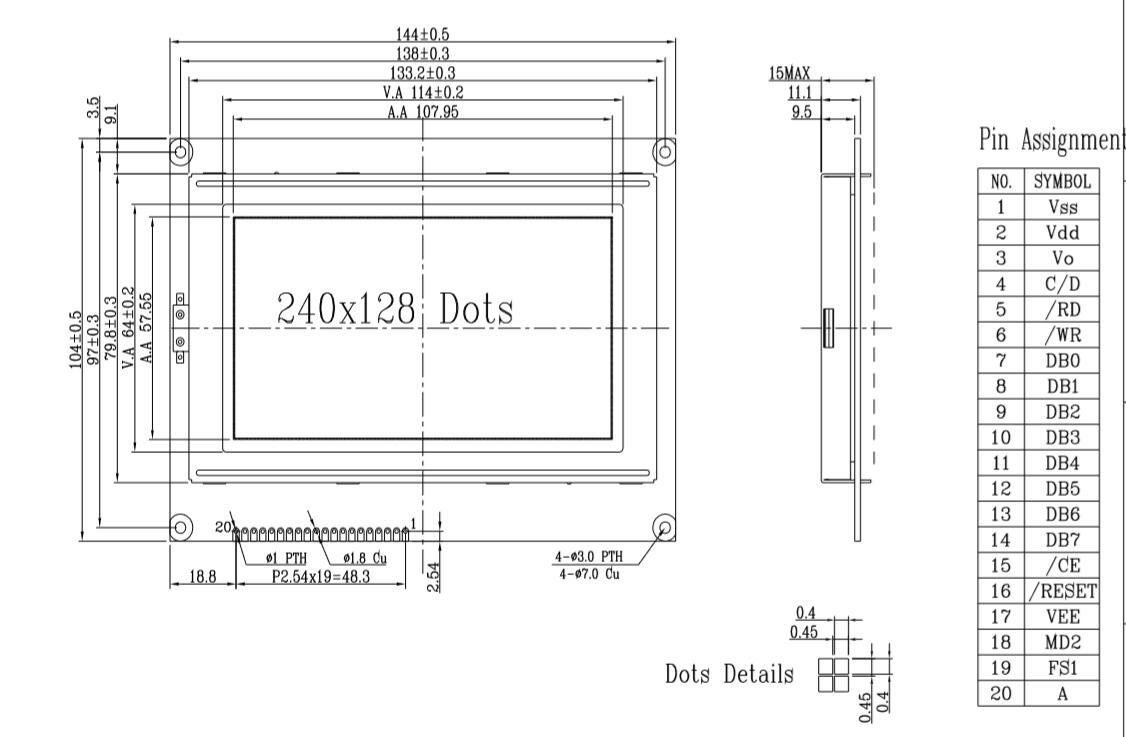

    Product Drawing
