    1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting

    Ask Lasest Price
    Brand Name : Elite Tree
    Model Number : ET144NP
    Certification : ISO9001:2015 / ISO14001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100Kpcs~ per month
    Delivery Time : 5days for sample and 20-25 days for mass production
    • Product Details
    • Company Profile

    1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting

    1.44 inch 128*128 Resolution RGB LCD Display Module Optional Touch Screen


    TFT LCD Display Module


    Product Information


    Display Type1.44'' TFT screen
    Display format128*128 Dots
    Outline dimension30.6*34.8*2.5 mm
    Visual area27.7*32.4mm
    Active area25.5*26.5 mm
    IC package
    COG
    IC or equivalent
    ST7735S
    InterfaceRGB Parallel
    Touch panel optionalYes
    Viewing direction6:00
    LED backlight color
    White
    Power supply(typ)3.1V
    Backlight current (typ)side, white Led(1PCS)
    Operating temp
    -20ºc~70ºc
    Storage temperature-30ºc~80ºc
    If accept customizedYes
    RoHS complianceYes

    Our advantages


    1) Small quantity accepted
    2) Competitive price and short lead-time and best service
    3) ROHS/ ISO 14001 and other related certificates are available
    4) Reply the mail within 24 hours


    Application


    Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

    Domestic electrical appliance(Household appliance), Fuel dispensers,

    Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

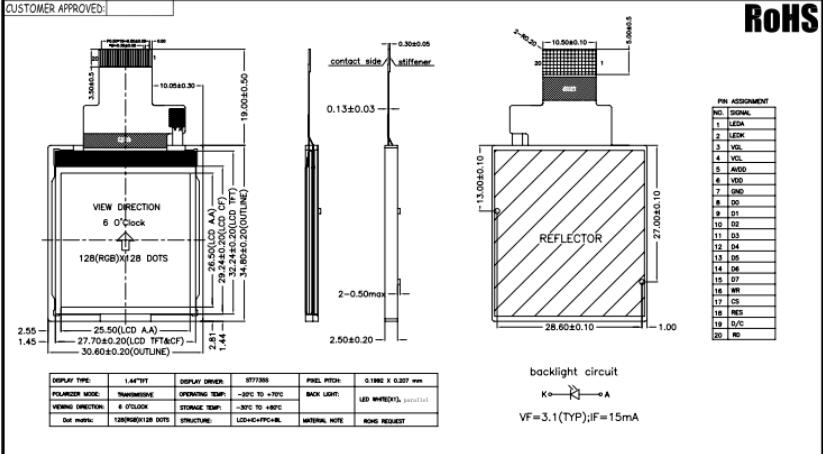

    Product Drawing



    Product Photo
